Behaviors

This section covers the RPG Power Forge feature : Behaviors !

Summary

• Feature definition
• Feature location
  • From the Tool Bar
• Feature overview
• Tier-list
  • The role of the Tier-list
    • Blocking Behaviors
    • Non-Blocking Behaviors
• Customization
  • Add a new Behavior
  • Customize a Behavior
  • Enable / disable a Behavior
  • Move / Remove a Behavio

Feature definition

Feature location

From the Tool Bar

Feature overview

The Behavior feature window is splitted in 2 panels :

• left panel : Tier-list (list of all attached Behaviors to the current Actor).
• right panel : Behavior settings (parameters of the selected Behavior).

Tier-list

The Tier-list displays every Behaviors attached to the Actor. This list is composed of one or more Tiers : a tier has a color and represents a sub-list of Behavior.

Our sample screenshot contains :

• a Tier-list composed of 4 Tiers (Red, Yellow, Green and Blue)
• + and - buttons to add and remove Tiers.

The role of the Tier-list

The Tier-list is used to order Behaviors by priority of activation. A Behavior is activated if its Condition is met (checked every frame).

If a Behavior is in a warmer Tier (reddish color) than another one in a colder Tier (blueish color), the warmer one will be checked first for its Condition.

If 2 Behaviors are in the same Tier, then the left one will be checked first.

Therefore, to schematize the ordering :

Blocking Behaviors

A Blocking Behavior will prevent the activation of the colder ones when activated (condition is met) until completion :

Non-Blocking Behaviors

A non-Blocking Behavior will allow the activation of the colder ones even when activated (condition is met) :

Customization

Add a new Behavior

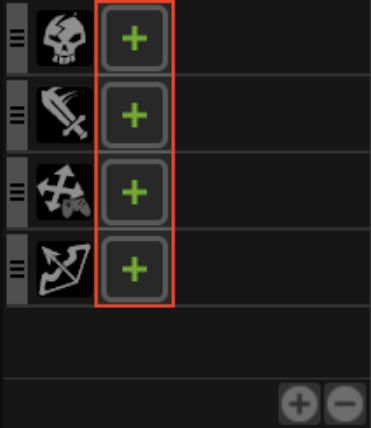

From the Tier-list you can Select one of the Green + button to add a new Behavior on the corresponding Tier :

You'll find Behaviors sorted in categories so you can easily find them. You can also use the Search field to filter by name :

Customize a Behavior

You can change the name and main color of a Behavior if needed :

Enable / disable a Behavior

Move / Remove a Behavior
